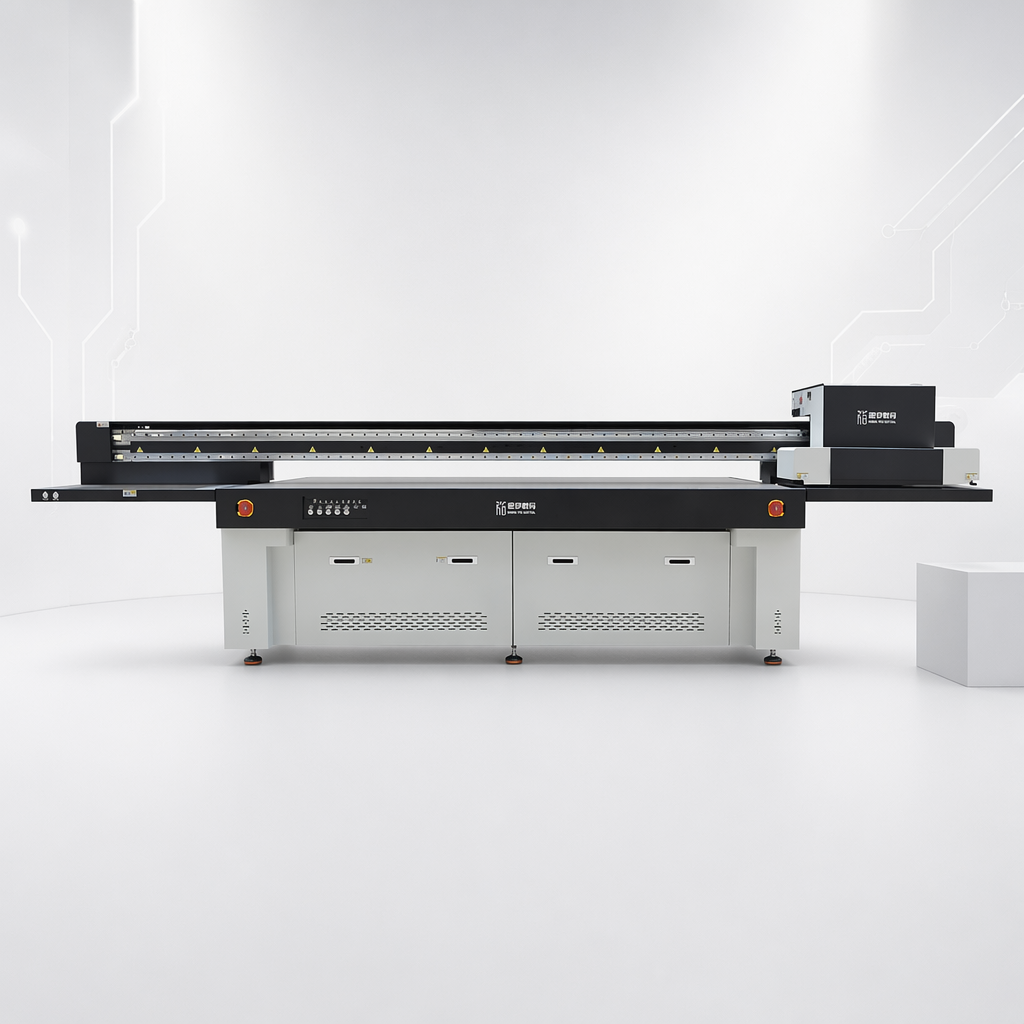

HC-2513 6th-Generation Industrial UV Flatbed Printer: Redefining Large-Format Digital Manufacturing

Introduction

The HC-2513 6th-Generation UV Flatbed Printer stands as the pinnacle of industrial digital inkjet technology. Engineered for the modern manufacturing landscape, this heavy-duty solution combines aerospace-grade construction with cutting-edge Ricoh printhead technology to deliver photographic print quality at industrial speeds. Designed to handle the most demanding substrates—including architectural glass, thick foam boards, metal composites, and leather—it empowers enterprises to achieve superior output consistency while drastically reducing reliance on traditional screen printing methods.

Core Technological Advantages

1. 6th-Generation Upgraded Motion System

• High-Speed & High-Precision: Built on a "Magnetic Levitation + Precision Ball Screw" architecture, the system utilizes a high-speed steel beam and THK silent guide rails to achieve micron-level precision without vibration.
• Intelligent Nozzle Protection: Features an advanced anti-collision system and a medical-grade osmosis filtration device to safeguard the printheads, ensuring uninterrupted production even in high-volume environments.

2. Aerospace-Grade Structural Integrity

• Monocoque Steel Frame: The full-steel integrated frame and aerospace-grade aluminum beam provide exceptional rigidity, minimizing deformation and ensuring long-term stability across thousands of operational cycles.
• High-Suction Vacuum Platform: Equipped with a precision-milled flatness platform and a high-power servo motor, it guarantees strong adhesion for materials up to 100mm thick (customizable to 200mm), including irregular and heavy-duty substrates.

3. Expanded Versatility & Multi-Functional Printing

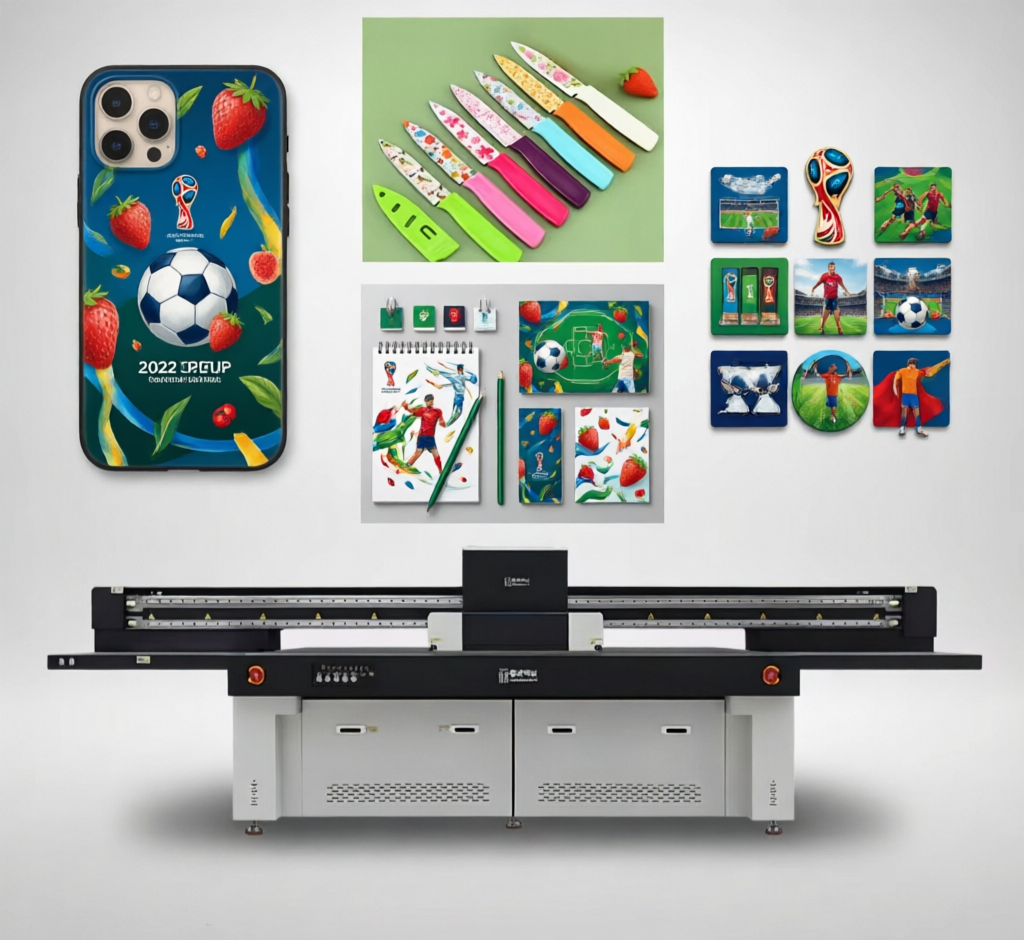

• Unmatched Material Range: Capable of printing on virtually any flat surface, from rigid materials (glass, ceramic, metal) to flexible and soft goods (leather, PVC, foam board).
• Advanced Functional Printing: Supports High-Drop Printing (0-30mm) for textured surfaces and Vision Positioning Printing for precise registration on pre-cut or irregular shapes, eliminating the need for physical fixtures.

4. Intelligent Ink Management & Color Fidelity

• Constant-Temperature Circulation: Features an intelligent ink path system with constant temperature control and automatic ink mixing to prevent clogging and maintain consistent viscosity.
• Professional Color Management: Supports CMYK+LcLm+W+V configurations (White & Varnish) and utilizes ICC color management curves to ensure minimal color deviation and rich, vibrant results.

Industrial Application Scenarios

Building & Decoration Materials

• Architectural Glass: Direct printing on tempered glass for partitions and facades.
• Ceramic & Stone: High-resolution decorative patterns for tiles and slabs.
• Composite Panels: Printing on aluminum-plastic, foam, and honeycomb panels for signage.

Consumer Goods & Packaging

• Luxury Packaging: CMYK+White layering on rigid boxes and cosmetic packaging.
• Promotional Gifts: Custom printing on luggage, leather goods, and sporting equipment.
• Footwear & Accessories: Direct printing on shoe materials and accessories.

Industrial & Technical Components

• Control Panels: Durable markings on metal and plastic panels.
• Signage & Displays: High-impact placards, POP displays, and exhibition graphics.

Operational Value Proposition

• Cost Efficiency: The industrial-grade negative pressure ink supply system and low power consumption (1-1.5 degrees/h) minimize operational costs.
• Environmental Safety: Zero VOC emissions with SGS and MSDS certified eco-friendly UV inks, ensuring a safe working environment.
• Lifecycle Support: Backed by a professional manufacturer with over 3,000 global customers, offering a 1-year warranty and 24/7 technical consultation.

Technical Validation

Every HC-2513 unit undergoes rigorous stress testing and environmental validation (Temperature: 20℃~32℃ / Humidity: 40~70%) before shipment. The integration of 8-core configurations and premium subsystems guarantees reliable, defect-free performance in demanding industrial settings.
