As a high-end upgraded model of Shenzhen Hengcheng Weiye’s Tianji series— a professional manufacturer of high-end UV printing equipment with 13 years of technical experience and over 3000 cumulative unit sales—the TianJi-9003 High-Speed Digital Carton Printing Machine is a high-efficiency ultra-large-format digital printing solution tailor-made for the packaging and printing industry. Adhering to the corporate tenet of "High Quality, Intelligence and Standardization", this machine is equipped with a three-printhead one-pass core configuration, combining ultra-large-format printing, high-speed output and high-precision positioning. Backed by the brand’s complete one-stop service system, it provides a more efficient, stable and flexible digital printing solution for medium and large packaging enterprises engaged in batch ultra-large-format carton production, and becomes a core tool for enterprises to realize personalized customization and mass production integration.
Carton Machine

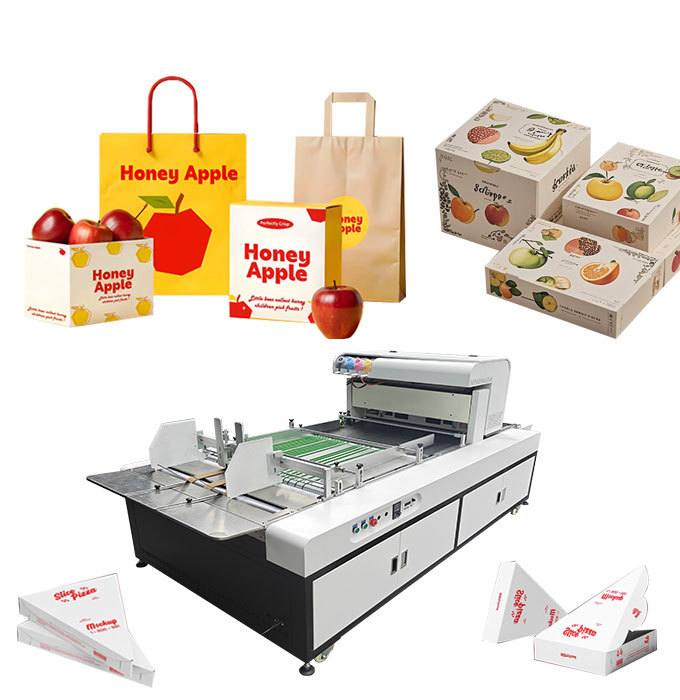

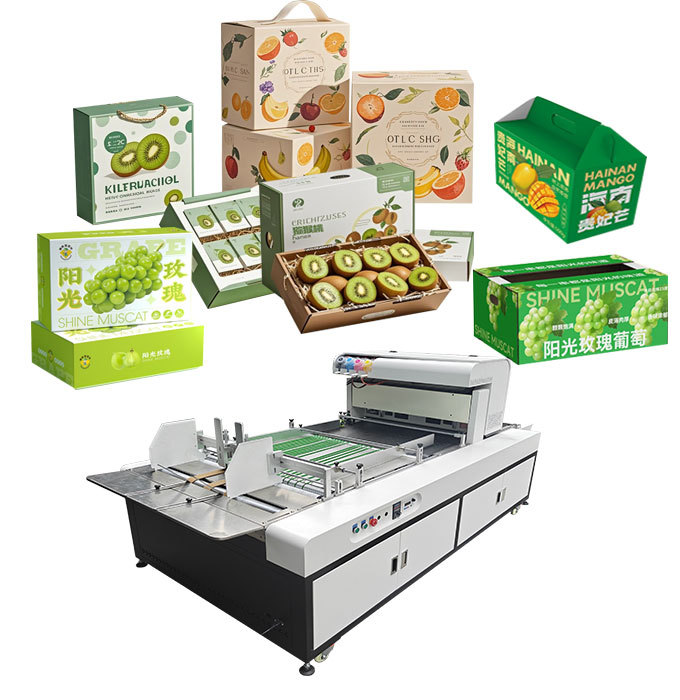

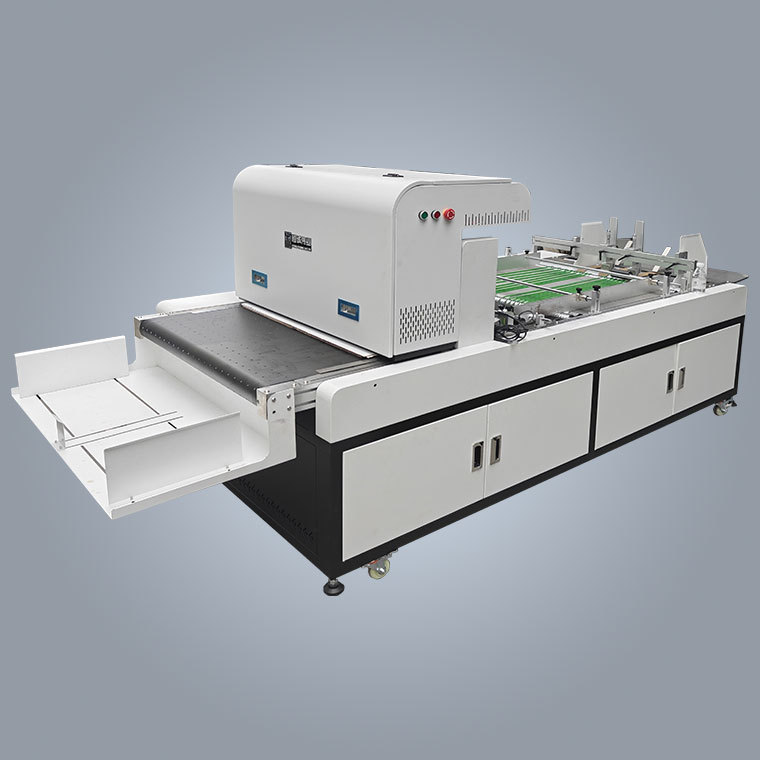

The TianJi-9003 High-Speed Digital Carton Printing Machine is an independently R&D and produced ultra-large-format one-pass digital printing equipment by Hengcheng Weiye, a source factory with mature R&D and manufacturing capabilities in digital printing inkjet systems. Aiming at the pain points of ultra-large-format carton printing such as low single-pass efficiency, poor color consistency and high maintenance costs, the machine is upgraded with a one-pass three-printhead standard configuration, realizing 900mm ultra-wide format one-pass direct printing without plate making, and perfectly solving the problems of multi-pass splicing and color deviation in traditional large-format printing.
It supports both single-piece feeding after die-cutting and roll-to-roll printing with post die-cutting, adapting to the diversified production processes of medium and large packaging enterprises. Equipped with a four-zone independent high-precision steel structure adsorption platform and high-negative pressure vortex blower, it ensures stable positioning and smooth conveying of ultra-large and thick carton materials. As a high-end model of Hengcheng Weiye’s Tianji series, the TianJi-9003 inherits the brand’s selection of HP original high-quality accessories and humanized intelligent design, and is supported by the company’s pre-sales free proofing, on-site planning, in-sale exclusive operation training and after-sales efficient fault handling one-stop service system. It provides full-cycle technical support and stable operational guarantee for customers’ ultra-large-format carton batch printing, and truly realizes the integration of high efficiency, high quality and low cost.
Technical Specifications & Advanced Features
Core Technical Parameters
- Printhead: HP PageWide A3 4-color original printheads, 3 pcs standard configuration (one pass), single printhead width 297mm, horizontal printhead splicing supported, adjustable print width 100-900mm (ultra-large format)
- Ink System: Eco-friendly water-based dye ink / water-based pigment ink optional; water-based dye ink for vibrant and saturated colors, water-based pigment ink for strong water resistance and excellent fade resistance, meeting different packaging printing needs
- Drying System: Natural drying, perfectly matching water-based ink characteristics, no additional curing equipment required, energy-saving and suitable for continuous industrial production
- Ink Supply System: Large-capacity cartridge supply system with siphon belt ink shortage alarm device, real-time ink level monitoring and audio-visual alarm, avoiding printhead dry burning and ensuring reliable ink supply
- RIP Software: RIIN SharpPrint Embedded + Tianji digital printing control software, supporting efficient processing of ultra-large-format files, precise color adjustment and speed control
- Printing Modes: Multiple adjustable modes (high-speed/sketch/high precision), maximum resolution 1200×1200dpi, high-speed mode output up to 50m/min, balancing printing speed and precision
- Print Media: Media width 100-900mm, feeding length 200-900mm (customizable for longer sizes), media thickness 1.0-60mm; compatible with various water-absorbent carton and paper substrates of ultra-large format
- Printing Platform: High-precision steel structure platform with four-zone independent vacuum adsorption, realizing separate control of different printing areas, ensuring flat positioning of ultra-large-format media without warping
- Air Supply System: 1 high-negative pressure vortex blower, providing strong and stable adsorption force, ensuring no offset of media during high-speed conveying and printing
- Rewind & Unwind System: Feeder separation feeding system + slide-rail type receiving hopper + professional rewinding system, matching continuous production of roll-to-roll and single-piece materials
- Equipment Size: 3500mm(L)×1300mm(W)×1480mm(H) (paper feeding direction as length direction), industrial-grade compact design saving workshop space
- Machine Net Weight: 500kg, solid structural design ensuring stable operation without shaking during high-speed printing
- Working Environment: Temperature 20°C~30°C, humidity 60~80% (non-condensing), mild environmental requirements, easy deployment in various workshop production lines
Advanced Product Features
- One-Pass Three-Printhead Ultra-Large-Format Printing: 3 HP original printheads in one-pass configuration, 900mm ultra-wide print width, realizing one-pass direct printing of ultra-large-format cartons, eliminating multi-pass splicing steps, greatly improving batch production efficiency and ensuring the integrity and consistency of printing patterns.
- Four-Zone Independent High-Precision Adsorption: Four-zone independent control of the steel structure adsorption platform, which can adjust the adsorption force of different areas according to the size of the media, ensuring flat positioning of ultra-large, irregular and thick carton materials, and avoiding printing offset and blurring caused by media warping.
- Fully Sealed Automatic Printhead Moisturizing: Equipped with a fully sealed moisturizing device, which effectively protects the three printheads in standby or shutdown state, extends the service life of expensive original printheads, significantly reduces daily maintenance time and frequency, and guarantees continuous efficient operation of the equipment.
- Intelligent Ink Shortage Audio-Visual Alarm & Protection: Large-capacity ink supply system with real-time ink level monitoring, audio-visual alarm for ink shortage can display the missing ink color and immediately halt printhead operation, preventing printhead dry burning and damage, avoiding production waste caused by ink shortage, and reducing long-term operating costs.
- Professional ICC Color Calibration & Spot Color Matching: Adopts powerful RIP screening technology, supports ICC profile-based color calibration and spot color calibration function, realizes stable and efficient processing of ultra-large-format files, ensures consistent color reproduction for mass production, and makes the printed cartons have vibrant colors and accurate color matching.
- Variable Data Printing & Plateless Customization: Abandon the complex traditional plate making process, support variable data per sheet printing, realize one-sheet start printing for ultra-large-format cartons, perfectly meet the personalized customization needs of multiple batches with small quantities, and realize immediate delivery after printing.
- HP Original Printheads with Long Service Life: All adopt HP PageWide A3 original 4-color printheads, with fine ink dots and precise dot placement, ensuring clear printing of small characters and fine patterns on ultra-large-format cartons, and the long service life of printheads reduces the frequency of replacement and maintenance costs.
- Dual Feeding Modes for Strong Versatility: Supports both single-piece feeding after die-cutting and roll-to-roll printing with post die-cutting, adapting to different production needs of ultra-large-format carton products such as finished cartons and paper rolls, improving equipment utilization rate and production flexibility.
Unmatched Advantages Over Conventional Printers
Compared with traditional carton printing equipment (flexo/offset printers) and single/double-printhead digital printers, the TianJi-9003 High-Speed Digital Carton Printing Machine has unique and irreplaceable competitive advantages in ultra-large-format carton batch printing, and is a powerful tool for packaging enterprises to realize digital upgrade and efficiency improvement:
- Three-Printhead One-Pass Printing, Leapfrog Improvement in Efficiency: 3 original printheads work simultaneously in one-pass mode, 900mm ultra-wide format one-pass direct printing, high-speed mode output up to 50m/min; eliminating the plate making process of traditional printers and the multi-pass splicing operation of small-printhead digital printers, the production efficiency of ultra-large-format carton batches is improved by more than 50% compared with double-printhead models, and the production cycle is drastically shortened.
- Four-Zone Independent Adsorption, Higher Printing Precision & Stability: The four-zone independent high-precision steel structure adsorption platform can adapt to ultra-large, irregular and thick carton materials (up to 60mm), ensuring flat positioning without warping and offset during high-speed printing; the high-negative pressure vortex blower provides strong adsorption force, making the printing effect of ultra-large-format cartons more precise, with clear small characters and no blurring of fine patterns.
- No Plate Making, Low MOQ, Ultra-Flexible Customization: Breaks the high MOQ limitation of traditional plate-making printing for ultra-large-format cartons, realizes one-sheet start printing, and supports variable data printing; it can meet the personalized customization needs of small batches, multiple varieties and fast delivery in the packaging industry, and reduce the customization cost of ultra-large-format cartons by more than 60%, which is more in line with the current market demand for customized packaging.
- Three-Printhead Color Consistency, Better Printing Effect: The one-pass three-printhead synchronous printing design avoids color deviation and splicing marks caused by multi-pass printing, and the professional ICC color calibration system ensures consistent color reproduction for mass production; the printed ultra-large-format cartons have vibrant colors, strong adhesion, excellent color fastness and fade resistance, and the printing effect is far superior to traditional printing and single/double-printhead digital printing.
- Intelligent Protection & Original Accessories, Lower Operating Cost: HP original printheads with long service life, matched with fully sealed automatic moisturizing and intelligent ink shortage protection system, reduce the failure rate and replacement frequency of printheads; no plate making saves plate making, debugging and plate changing costs; the host adopts energy-saving design, low power consumption, effectively reducing the per unit printing cost of ultra-large-format cartons.
- Eco-Friendly Water-Based Ink, Compliance with National Environmental Standards: Adopts water-based dye/pigment eco-friendly ink, no harmful gas emission during printing, in line with national environmental protection requirements; the printed carton products meet food contact safety standards, expanding application scenarios such as ultra-large-format food gift boxes, daily necessities packaging and children’s product packaging.
- Intelligent Operation, Low Labor Threshold & High Compatibility: Equipped with professional embedded control software and simple and intuitive operation interface, no special professional operators required; the manufacturer provides free on-site operation and usage training, reducing training costs and labor input; the equipment is compatible with various water-absorbent carton substrates, and can be seamlessly connected with existing production lines of enterprises, with strong compatibility.
- 13 Years of Brand Technical Support, Worry-Free After-Sales Service: Backed by Hengcheng Weiye’s 13 years of technical experience and over 3000 units of cumulative sales, the machine is supported by a complete one-stop service system, including 15-minute proactive response, 2-hour solution provision, province-wide 8-hour on-site service and 1-year free maintenance; regular follow-up visits and permanent technical support ensure long-term stable operation of the equipment, solving all after-sales worries for customers.
Diverse Industrial Applications
The TianJi-9003 High-Speed Digital Carton Printing Machine features one-pass three-printhead, 900mm ultra-large format, high-speed output and strong material adaptability, and is widely applicable to the packaging and printing industry, especially for the batch digital printing of ultra-large-format carton and paper packaging products. It covers multiple high-demand application scenarios such as industrial large packaging, high-end gift box batch customization, e-commerce bulk large cartons and food large gift packaging, and is an ideal digital printing equipment for medium and large packaging and printing enterprises, large-scale logistics packaging factories, high-end gift box customization manufacturers and brand self-operated packaging workshops.
Core Printable Materials
Supports direct one-pass printing on various ultra-large-format water-absorbent carton and paper substrates with thickness of 1.0-60mm, including A/B/C/E grade corrugated cardboard, honeycomb cardboard, finished ultra-large corrugated cartons, white cardboard, yellow cardboard, kraft paper, thick paper rolls, thin wood boards, coated paper and writing paper; it is also suitable for degradable food containers, paper cups and carrying bags, with strong material adaptability and meeting the printing needs of different ultra-large-format packaging products.
Specific Application Scenarios
- Industrial & Large-Scale Logistics Packaging: Ultra-large-format industrial product packaging cartons, large logistics and express cartons, honeycomb cardboard large packaging; three-printhead one-pass high-speed printing can quickly print enterprise LOGOs, product information, logistics codes and anti-counterfeiting marks, support variable data batch printing, and improve the efficiency of logistics sorting and product identification.
- High-End Gift Box Batch Customization: Super large gift boxes for luxury products, batch large festival gift packaging cartons, high-end brand display gift boxes; high-precision 1200×1200dpi printing restores fine patterns, texts and brand elements, the four-zone independent adsorption ensures no offset of large gift boxes, and the consistent color reproduction makes the batch gift boxes have the same high-quality effect, enhancing the brand grade and product added value.
- Food & Catering Large Gift Packaging: Batch super large food gift boxes, large cake boxes, bulk catering packaging cartons; eco-friendly water-based ink meets food contact safety standards, with strong water resistance and fade resistance, ensuring food safety while improving the visual effect of packaging, and meeting the batch printing needs of food enterprises for large gift packaging.
- E-Commerce Bulk Large Carton Packaging: Ultra-large e-commerce express cartons, brand customized large e-commerce packaging cartons; one-sheet start printing and 50m/min high-speed output adapt to the fast update and large batch demand of e-commerce packaging, support personalized customization of packaging patterns and LOGOs, and help e-commerce brands enhance brand recognition in the logistics link.
- Daily Consumer Goods Large Batch Packaging: Super large shoe boxes, home appliance large packaging cartons, large shopping bags and file bags for large enterprises; three-printhead one-pass batch printing meets the large-scale production demand of consumer goods enterprises, the stable color consistency ensures the unification of product packaging image, and supports small-batch customized printing for different product series, with high production flexibility.
- Cultural & Creative & Stationery Large-Format Packaging: Ultra-large-format cultural and creative postcards, large greeting cards, cultural and creative large gift boxes, high-grade paper cup batches; high-precision printing delivers fine and delicate effects, meeting the high aesthetic and customization requirements of cultural and creative packaging products, and the eco-friendly ink is more in line with the environmental protection concept of the cultural and creative industry.
- Degradable Packaging Batch Printing: Ultra-large-format degradable food containers, degradable carrying bags and degradable cartons; adapting to the development trend of green packaging, the eco-friendly water-based ink is perfectly matched with degradable materials, realizing green and environmental protection from printing to packaging, and meeting the batch printing needs of enterprises for degradable large-format packaging.
The TianJi-9003 High-Speed Digital Carton Printing Machine is mature and stable in performance, labor-saving and cost-effective, with fast and convenient operation and flexible printing (starting from 1 sheet). It effectively solves the industry pain points of low efficiency, poor precision, color deviation and high cost of ultra-large-format carton batch printing, and is a core digital upgrade tool for packaging enterprises to expand ultra-large-format carton business, improve production efficiency, reduce production costs and realize the integration of personalized customization and mass production.
| Product name |
TianJi-9003 carton printer |
| Print head |
HP page width A3 print head |
| Print resolution |
300-1200DPI |
| Media width |
100-900mm |
| Standard charging medium length |
200mm-900mm |
| Media thickness |
1.0-100mm |
| Net weight |
500kg |
| Equipment size |
3500mm*1300mm*1480mm |
| Printer scanner type |
Digital Jet Printing |
