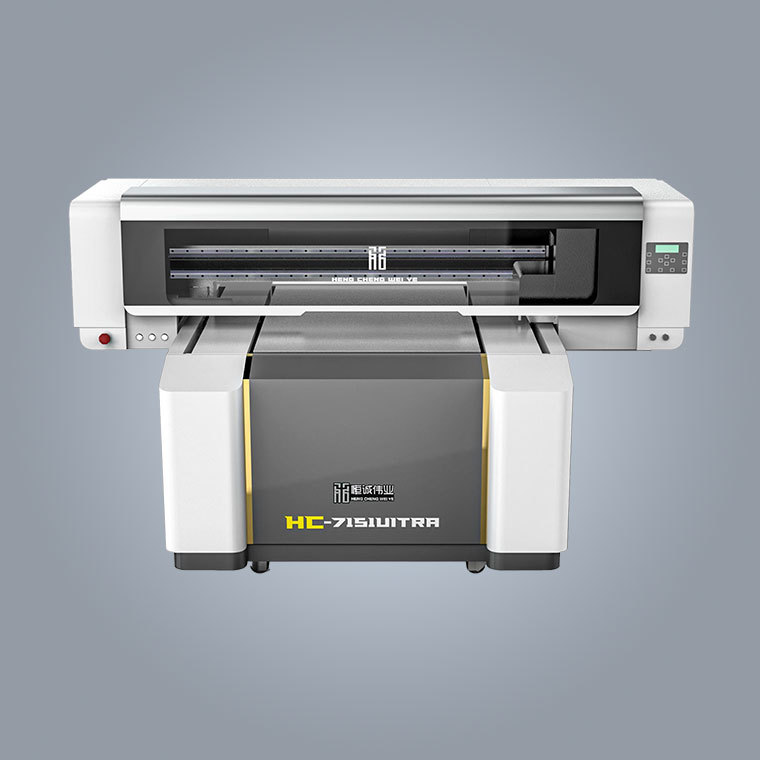

HC-7151 Ultra 6th-Generation UV Flatbed Printer: Precision Redefined for Small & Medium Format Markets
Introduction
The HC-7151 Ultra 6th-Generation UV Flatbed Printer is a specialized industrial solution engineered for high-precision, small-format digital manufacturing. Designed to excel in the competitive short-run and customization market, this machine combines a compact footprint with the robust "Magnetic Levitation + Precision Ball Screw" architecture. It is specifically optimized for high-value applications such as silicone products, glassware, cosmetic packaging, and mobile phone cases. With a unique focus on handling highly irregular surfaces (up to 22mm height difference), it allows businesses to produce embossed textures and complex 3D prints without physical fixtures.
Core Technological Advantages
1. 6th-Generation Motion System
- High-Speed & High-Precision: Built on a "Magnetic Levitation + Precision Ball Screw" architecture, the system utilizes a high-speed steel (HSS) beam and THK silent linear guide rails to achieve micron-level precision without vibration.
- Intelligent Nozzle Protection: Features an advanced anti-collision system and a medical-grade osmosis filtration device to safeguard the printheads, ensuring uninterrupted production even in high-volume environments.
2. Aerospace-Grade Structural Integrity
- Monocoque Steel Frame: The full-steel integrated frame and aerospace-grade aluminum beam provide exceptional rigidity, minimizing deformation and ensuring long-term stability across thousands of operational cycles.
- High-Suction Vacuum Platform: Equipped with a precision-milled flatness platform and a high-power servo motor, it guarantees strong adhesion for materials up to 350mm thick, including irregular and heavy-duty substrates.
3. Advanced 3D & Texture Printing
- High-Drop Printing Capability: Supports Micro High Spray (0-22mm) printing, specifically designed to handle significant height differences on the same substrate. This eliminates the need for physical fixtures and allows for direct printing on uneven surfaces.
- Vision Positioning Printing: Utilizes advanced vision systems for precise registration on pre-cut or irregularly shaped objects, ensuring perfect alignment every time.
4. Intelligent Ink Management & Color Fidelity
- Constant-Temperature Circulation: Features an intelligent ink path system with constant temperature control and automatic ink mixing to prevent clogging and maintain consistent viscosity.
- Professional Color Management: Supports W+CMYKLcLm+V configurations (White, Light Cyan, Light Magenta & Varnish) and utilizes ICC color management curves to ensure minimal color deviation and rich, vibrant results.
Industrial Application Scenarios
Consumer Electronics & Accessories

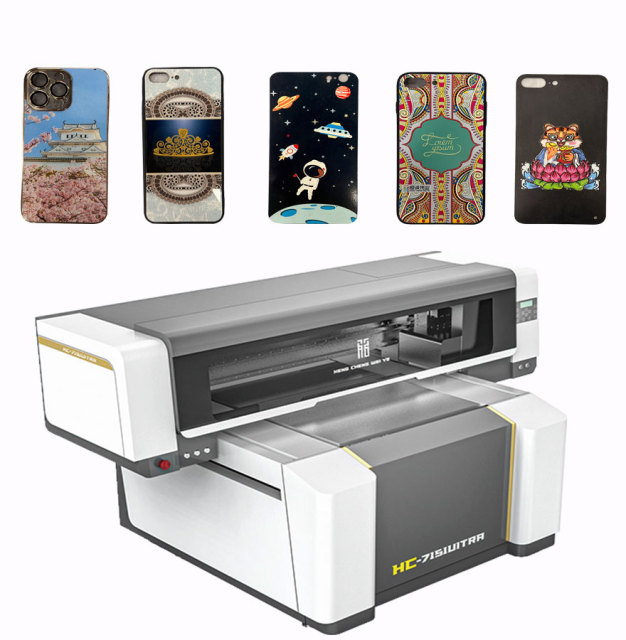

- Mobile Phone Cases: High-precision direct printing on various case materials.
- Sporting Goods & Toys: Durable graphics on complex shapes and surfaces.
Luxury Packaging & Cosmetics
- Cosmetic Packaging: CMYK+White layering on small, rigid boxes and cosmetic containers.

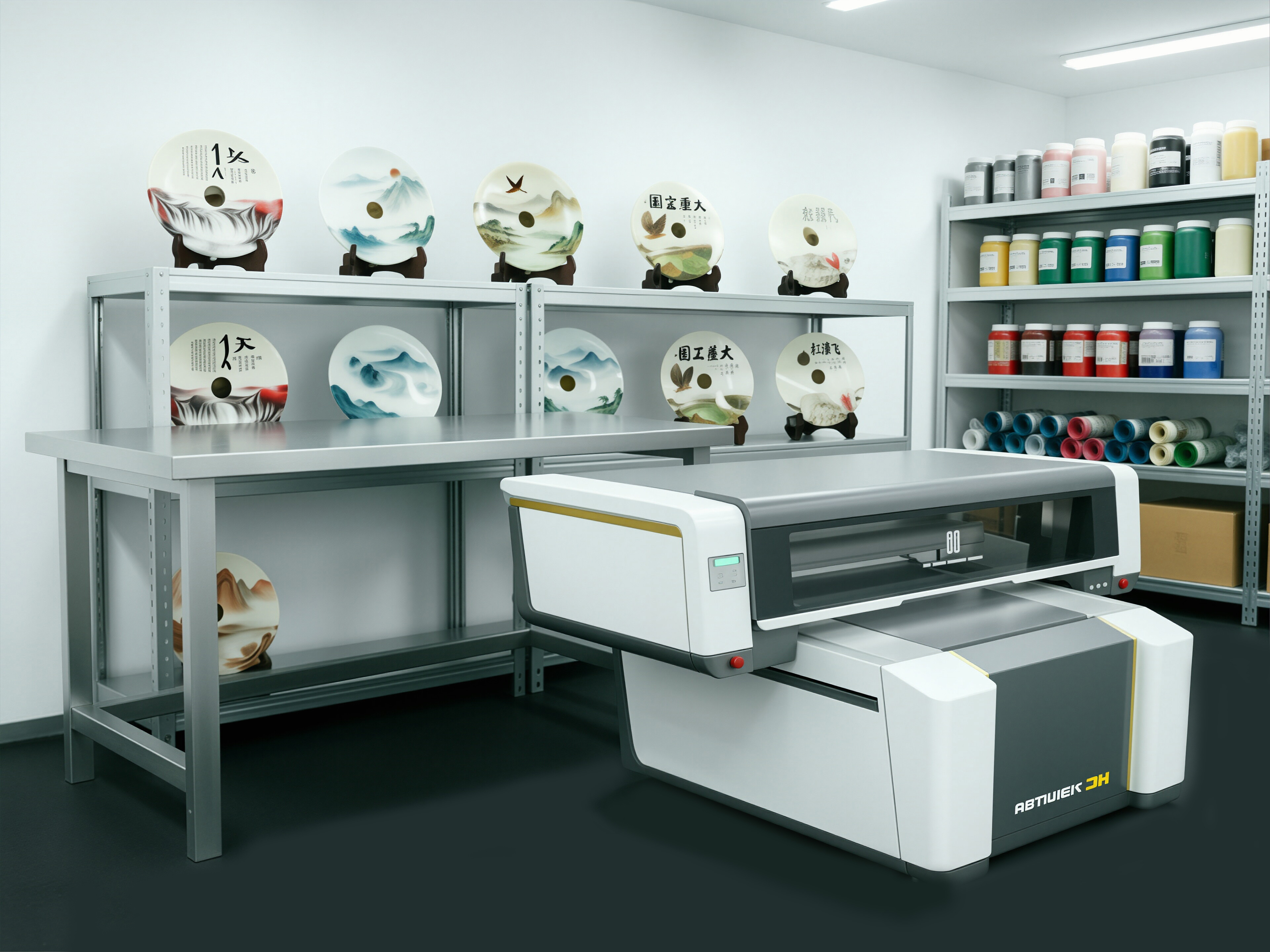

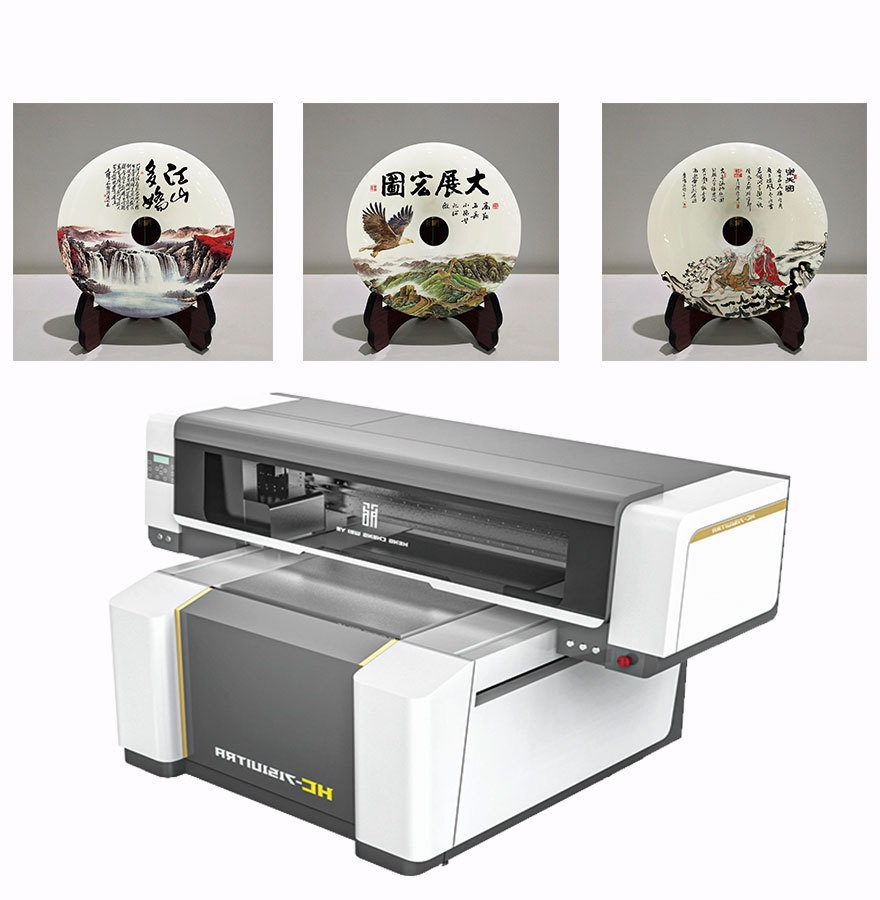

- Decorative Paint & Crafts: High-resolution printing on ceramic crafts and decorative glass.
Specialty & Textured Surfaces
- Silicone Products: Printing on flexible and soft silicone materials.
- Feature Walls: Creating textured decorative wall panels with high-drop printing.
Operational Value Proposition
- Cost Efficiency: The industrial-grade negative pressure ink supply system and low power consumption (1-1.5 degrees/h) minimize operational costs.
- Environmental Safety: Zero VOC emissions with SGS and MSDS certified eco-friendly UV inks, ensuring a safe working environment.
- Lifecycle Support: Backed by a professional manufacturer with over 3,000 global customers, offering a 1-year warranty and 24/7 technical consultation.
Technical Specifications
| Product Specification |
| product name |
HC-7151 Multi-Functional UV Printer |
| Print head model |
Toshiba CE4M print head (customization) |
| Ink Type |
UV Ink(White+ CMYK+Varnishi) |
| Plate Type |
Flatbed Printer |
| Printing Speed |
5㎡/H(Ricoh Gh2220) |
| Printing Size |
710mm*510mm（W*L） |
| Printing Thickness |
350mm |
| Equipment Weight |
680KG |
| Dimensions(L*W*H) |
2110mm*1416mm*1168mm |
| Voltage |
220V/3500W |
| Operating Environment |
Temperature:20°C~32°C/ Humidity:40~70% |
| Automatic Grade |
Semi-automatic |
| Brand Name |
Hengcheng Weiye |
| Place of Origin |
Guangdong, China |
| Applicable Industries |
Building Material, Cosmetic material, Toy, decoration, shoe, 3C products |
| Warranty |
One year free repair, lifetime maintenance |
| Video Outgoing-inspection |
Provided |
