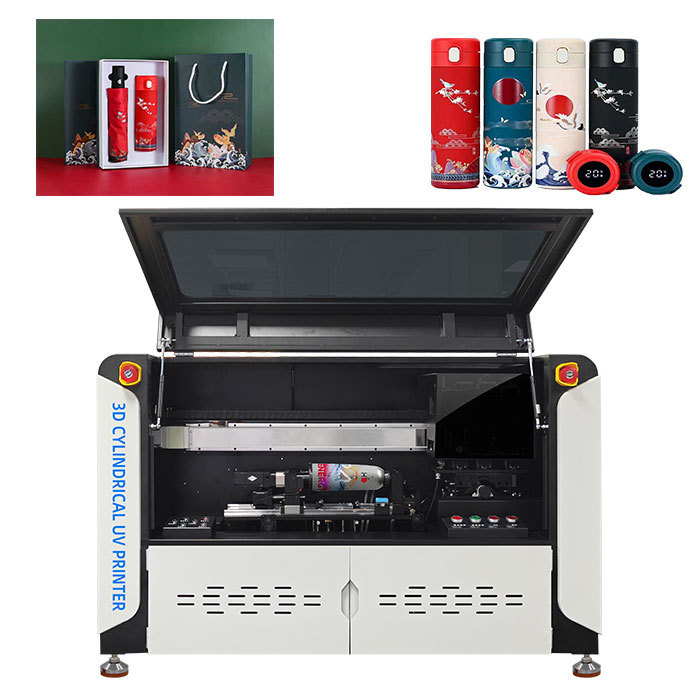

DM-360DF Cylindrical UV Printer Description
Product Introduction
The DM-360DF is a self-developed and upgraded 3D cylindrical UV printer by Hengcheng Weiye, supporting 360° direct printing on cylindrical substrates. Equipped with a newly upgraded UV Light Reflection Control System, it effectively prevents UV light from damaging the print head. The printer integrates multi-functional printing fixtures, industrial-grade core components and an intelligent protection system, realizing one-pass printing of white ink, color ink and varnish. It features high precision, strong adaptability and easy operation, meeting the personalized and batch printing needs of various cylindrical and special-shaped cylindrical materials, and is a professional solution for industrial cylindrical digital inkjet printing.
Applicable Printing Products
This printer is suitable for customized printing of cylindrical products across multiple industries, with core applicable categories including: tea tins, vacuum cups, alcohol & beverage cans, cosmetic packaging containers, fishing rods, various packaging cans and other cylindrical workpieces. It can achieve high-definition pattern printing on cylindrical and special-shaped cylindrical substrates of different materials, covering the production needs of gifts, daily necessities, packaging, outdoor supplies and other fields.
Technical Specifications
- Print Head: Epson-i1600U1, configurable with 1-3 pcs
- Printing Method: 360° rotary printing, seamless pattern splicing
- Special Functions: Taper printing, embossed & concave surface printing
- Color Configuration: W+CMYK+V (White, Cyan, Magenta, Yellow, Black, Varnish)
- Printing Precision: 600-1800DPI, up to 2400DPI high-precision output
- Printing Speed: 60-90 pcs/hour (Standard Cup), up to 30 seconds per piece
- Working Mode: Semi-Automatic Loading, Unloading & Printing
- Ink Curing: LED-UV Curing
- Applicable Diameter: 35-185mm (large diameter range)
- Power Supply: 220V/1500W
- Equipment Dimension & Weight
- Standard Model: L1200mm×W680mm×H1550mm, 290KG
- Desktop Model: L1200mm×W520mm×H800mm, 150KG
- Core Modules: Internal Circulation Ink Supply System, Precision Linear Transmission Module, Specialized Control Board System, Industrial High-Pressure Jet Printhead, Precision Servo Motor
Product Advantages
- Multi-functional & Strong Adaptability
Equipped with a dedicated multi-functional printing fixture, supporting a large diameter range of 35-185mm. Realizes taper printing, embossed/concave surface printing for special-shaped cylindrical objects; with an inclination angle function to reduce ink drop, applicable to more cylindrical substrate materials.
- High Precision & Efficient Printing
Adopts industrial Epson high-pressure jet printhead with up to 2400DPI high precision; realizes one-pass printing of white, color ink and varnish, with fast printing speed (30 seconds per piece at the fastest) and high batch production efficiency.
- 360° Seamless & High-Quality Output
360° rotary seamless splicing printing technology, no splicing marks on cylindrical patterns; the printed patterns have excellent ink adhesion and clear layers, with a prominent embossed printing effect to enhance the product texture.
- Intelligent & Safe Operation
Built-in intelligent protection system and pure electric power supply for double safety assurance; the whole machine runs stably with simple operation and maintenance, and is equipped with a multi-machine color matching system to ensure consistent color output for multiple devices in batch production.
- Professional Industrial Configuration
Integrates core components such as precision servo motor, internal circulation ink supply system and precision linear transmission module; LED-UV curing technology ensures fast ink drying and firm adhesion, meeting industrial production standards.
- Comprehensive After-Sales Service
Backed by Hengcheng Weiye’s professional after-sales service system, providing pre-sales free sample proofing, on-site installation and commissioning, equipment operation training and regular follow-up maintenance, solving all worries for customers in production and use.
