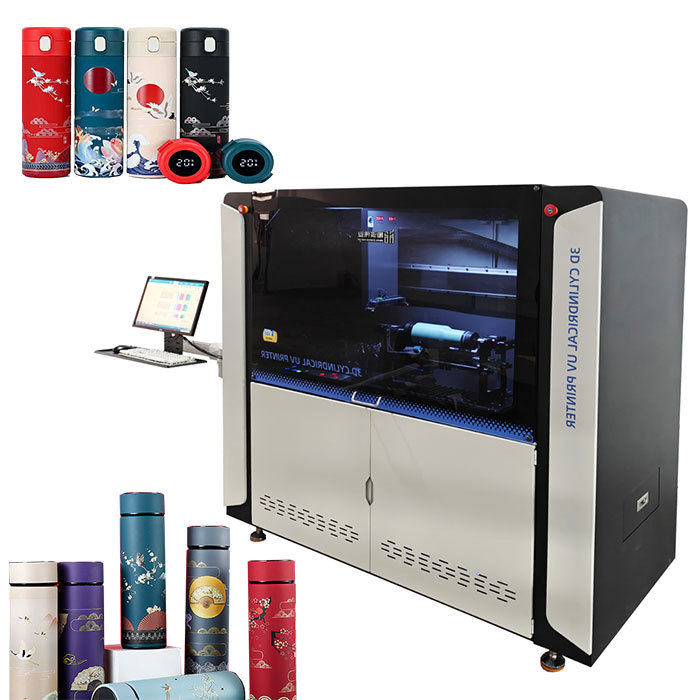

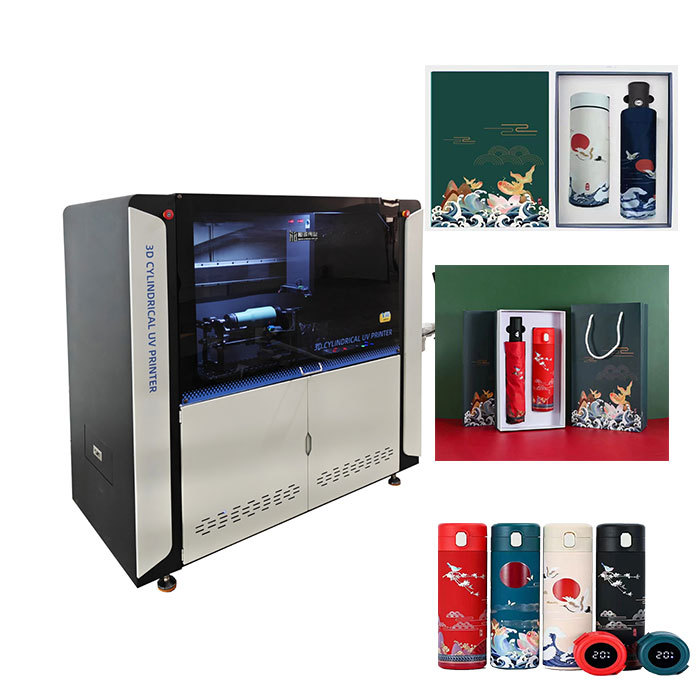

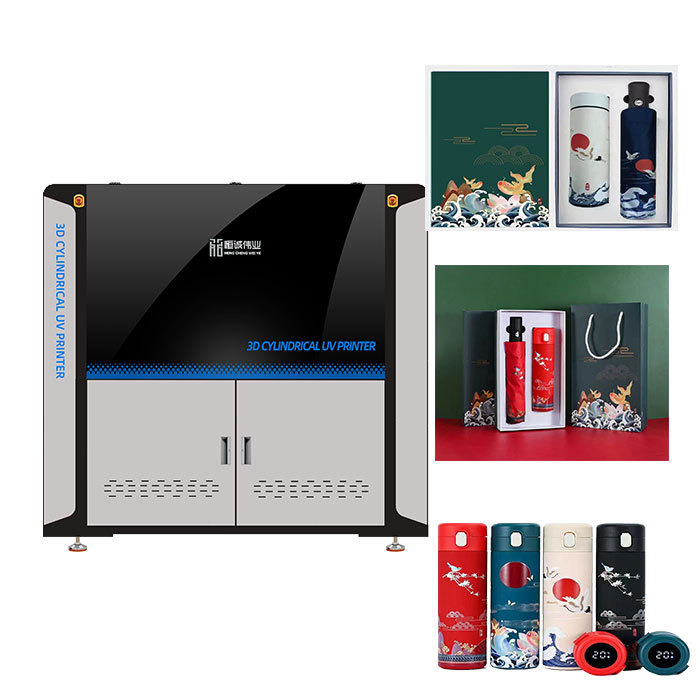

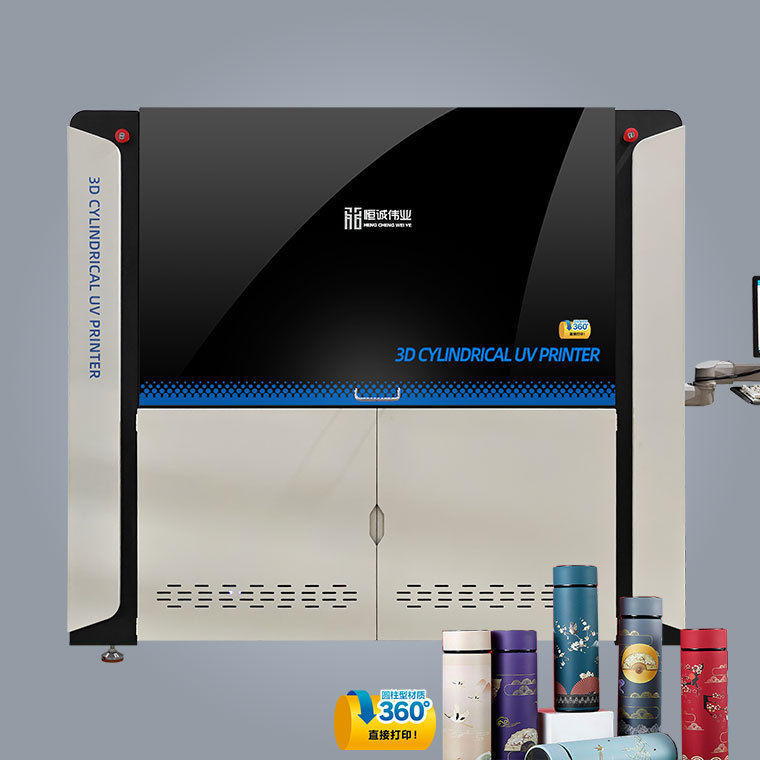

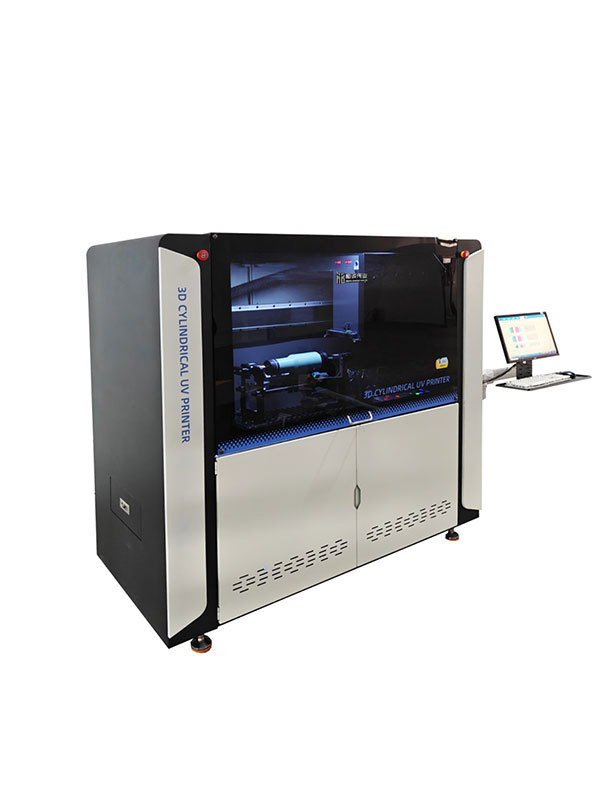

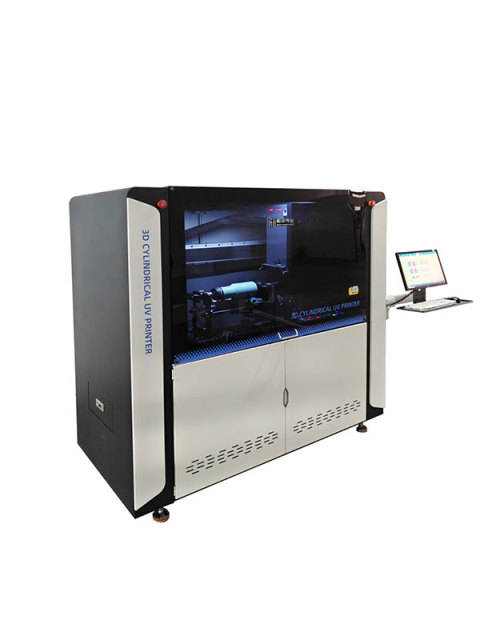

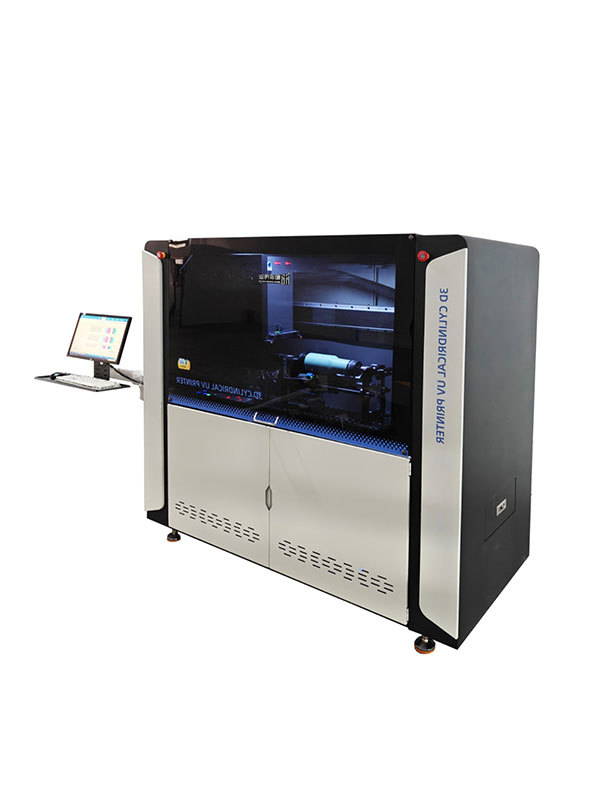

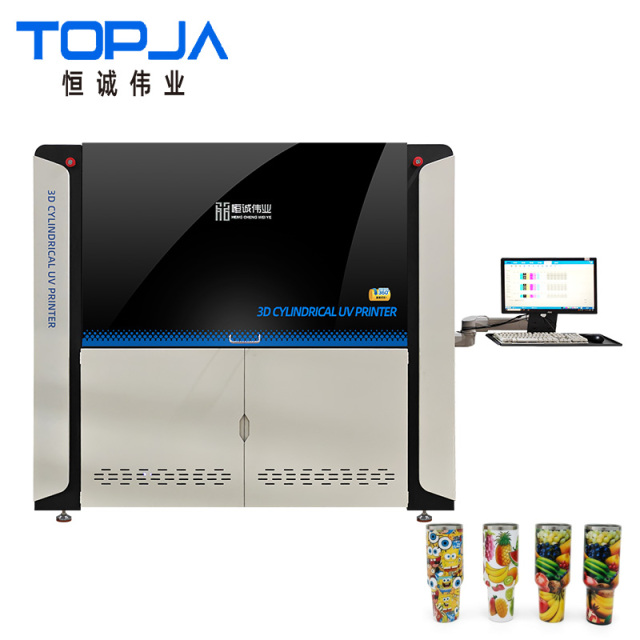

DM-360CF Cylindrical UV Printer
1. Product Introduction
The DM-360CF is an upgraded 3D cylindrical UV printer independently developed and produced by Hengcheng Weiye, supporting 360° direct printing on all cylindrical substrates. Equipped with an all-new UV Light Reflection Control System, it effectively prevents UV light from damaging the print heads and ensures stable and long-term operation of the equipment. The printer is built with industrial-grade core configurations such as Toshiba high-precision print heads, high-drop internal circulation ink supply system and laser scanning modeling module, integrating high precision, strong adaptability and high-quality output. It can realize one-pass printing of multi-color configurations with white ink and varnish, meeting the personalized customization and batch production printing needs of standard and special-shaped cylindrical products in various industries, and is a professional industrial digital inkjet printing solution for cylindrical substrates.
2. Applicable Printing Products
This printer is suitable for customized high-definition printing of cylindrical and special-shaped cylindrical products across multiple industries, with core applicable categories including: tea tins, vacuum cups, alcohol & beverage cans, cosmetic packaging containers, fishing rods, various cylindrical packaging cans and transparent glass cups. It can realize stable printing on different material substrates and special-shaped cylindrical workpieces such as conical cups, covering the production and customization needs of gifts, daily necessities, food and beverage packaging, cosmetic packaging, outdoor supplies and other fields.
3. Technical Specifications
- Print Head: Toshiba CF3R, configurable with 4-5 pcs
- Print Head Precision: 3.0-4.0PL
- Printing Method: 360° rotary printing, seamless pattern splicing
- Special Functions: Special-shaped scanning modeling, taper adjustment, concave-convex drop printing, 22mm high-drop printing
- Color Configuration: W+CMYK+V / W+CMYKLcLm+V (White + Cyan + Magenta + Yellow + Black + Light Cyan + Light Magenta + Varnish)
- Printing Precision: 600-1800DPI
- Printing Speed: 60-90 pcs/hour
- Working Mode: Semi-Automatic Loading, Unloading & Printing
- Ink Curing: LED-UV Curing
- Applicable Diameter: 35-185mm (large diameter range)
- Power Supply: 220V/1500W
- Equipment Dimension: L1540mm×W850mm×H1750mm
- Equipment Weight: 300KG
- Core Modules: Internal Circulation Ink Supply System, Precision Linear Transmission Module, Specialized Control Board System, Industrial High-Pressure Jet Printhead, Precision Servo Motor, Multifunctional Fixture Module
4. Product Advantages
- Multi-functional Fixture & Strong Adaptability
Equipped with a professional multi-functional printing fixture, supporting printing on standard cylindrical objects, special-shaped cups, conical cups and transparent glass cups; quick chuck replacement for easy operation, and adaptable to 35-185mm large diameter range cylindrical substrates.
- High-Drop Print Head with Long Service Life
Adopts high-drop internal circulation print heads with a 22mm high-drop printing capability, which can print on uneven materials; the print head service life is twice that of ordinary print heads, reducing maintenance and replacement costs.
- Laser Scanning for Special-Shaped Cylinders
Built-in laser sensor that automatically measures and scans special-shaped cylindrical objects, and intelligently matches the product shape with print pattern data, ensuring precise printing on non-standard cylindrical workpieces.
- 360° Seamless Splicing High-Quality Printing
Integrated with a professional seamless splicing algorithm in the software, and the rotation system is equipped with an annular precision grating; realizing 360° pattern seamless docking with no splicing marks, and the printed patterns have clear layers and strong three-dimensional sense.
- Excellent Ink Adhesion & Wide Material Compatibility
The ink has excellent adhesion on different materials and paint surfaces (such as frosted paint surfaces, bamboo); with unique primer technology, it can be applied to more substrate materials, meeting the printing needs of different industries.
- Customizable Embossed Printing Effect
Support setting different printing modes as needed, to meet various printing requirements such as flat printing, embossed printing and high embossed printing, effectively enhancing the texture and added value of printed products.
- Multi-Machine Color Consistency
Equipped with constant temperature system, internal circulation ink circuit and CRT Beidou Color Matching System; perfectly solving the color difference problem of multiple machines in batch production, ensuring uniform color output of the same product.
- Intelligent & Stable Industrial Operation
Pure electric power supply with intelligent protection system for double safety assurance; the whole machine is built with industrial-grade core components such as precision servo motor and linear transmission module, running stably with easy operation and daily maintenance.
- Comprehensive 24/7 After-Sales Service
Backed by Hengcheng Weiye’s perfect after-sales service system, providing 24/7 after-sales technical support; with simultaneous after-sales services from corporate headquarters, national branch offices and service stations, including 1-year warranty and lifelong technical support, solving all worries for customers.
